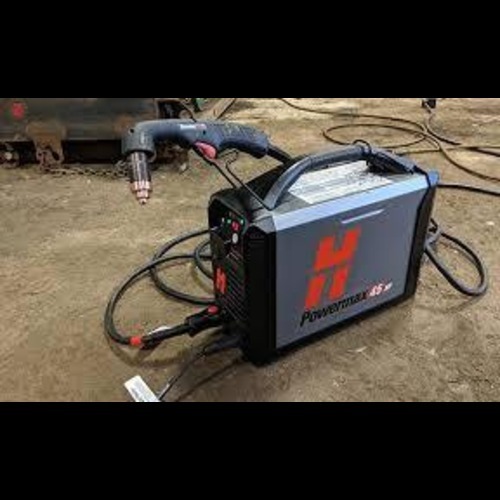

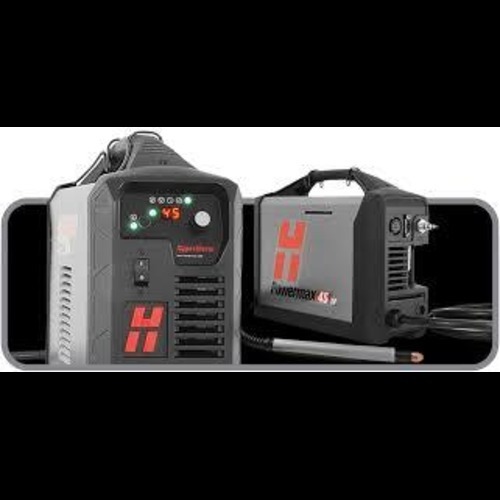

Hypertherm 45XP Air Plasma Cutting Machine

About Hypertherm 45XP Air Plasma Cutting Machine

Detailed Specification Powermax45 XP Plasma Cutting System

General Description

The Powermax45 XP is a professional-grade plasma cutting system designed for cutting, gouging, and marking on conductive metals. With a recommended cut capacity of 16 mm and severance up to 29 mm, this system delivers high-speed precision cutting in a compact and portable form. It supports both handheld and mechanized operations, making it highly versatile for industrial, maintenance, and fabrication environments.

Cutting Performance

• Recommended Cut: 16 mm @ 500 mm/min

• Maximum Cut (22 mm): 250 mm/min

• Severance (Hand Cutting): 29 mm @ 125 mm/min

• Piercing Capacity: 12 mm (handheld or with automatic height control)

Gouging Performance

• Metal Removal Rate: 3.4 kg/h

• Typical Groove Size: 3.2 mm deep 6.8 mm wide

Power & Duty Cycle

• Output Current: 1045 A

• Rated Output Voltage: 145 VDC

• Duty Cycle (40C):

  • 50% @ 45 A (230 V, 1-PH)

  • 60% @ 41 A

  • 100% @ 32 A

Input Power Options

• Voltage:

  • 200240 V (1-PH)

  • 230 V (1-PH), CE/CCC

  • 400 V (3-PH), CE/CCC

• Input Current:

  • 3239 A (single-phase)

  • 10 A (three-phase)

Compressed Air Requirements

• Flow Rate/Pressure: 188 l/min @ 5.9 bar (90 psi)

• Gases Supported:

  • Cutting: Air, Nitrogen, F5

  • Gouging: Air, Nitrogen, F5

  • Marking: Air, Argon

Machine Data

• Dimensions (L W H): 44.2 17.3 35.7 cm

• Weight:

  • 14 kg (CSA)

  • 15 kg (CE/CCC)

Torch Options

• Duramax Lock Torch Series:

  • 75, 15, 180 machine, robotic options

• FastConnect torch connection for quick swaps

• Marking & precision gouging support

Key Features

Lightweight, portable design
Drag-cutting technology for beginners
CNC interface-ready for mechanized use
Smart Sense auto air pressure adjustment
SpringStart for reliable torch performance
Up to 264% faster than oxyfuel on mild steel
3-year power supply warranty, 1-year torch warranty

The Powermax45 XP is an advanced and durable plasma solution ideal for professionals in fabrication, construction, repair, and maintenance across industries.
