Thermacut 105 HD Plasma Cutting Machine

About Thermacut 105 HD Plasma Cutting Machine

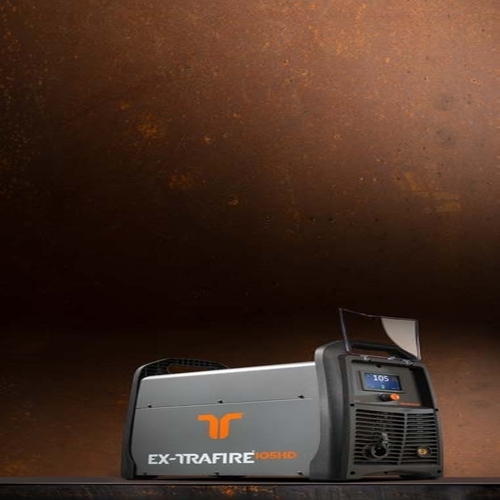

Detailed Specification EX-TRAFIRE 105HD Plasma Cutting System

General Description

The EX-TRAFIRE 105HD is a high-performance plasma cutting system built for heavy-duty industrial applications. With a 100% duty cycle at 105A, it offers continuous, reliable cutting, making it ideal for demanding sectors such as automotive, shipbuilding, structural steel, and fabrication. Designed for both manual and mechanized use, including CNC compatibility, this system provides exceptional speed, cutting quality, and cost-efficiency.

Cutting Performance

• Severance Cut: 55 mm+

• Recommended Cut: 38 mm

• Piercing Capacity: 25 mm

• Gouging Removal Rate: 9+ kg/h

Power & Duty Cycle

• Duty Cycle (40C): 100% @ 105 A

• Output Voltage:

  • Nominal: 200V

  • Extra Boost: 235V

• Input Voltage: 3400V 15%, 50/60 Hz

Compressed Air Requirements

• Flow Rate: 170 lpm @ 7 bar

• Maximum Pressure: 10 bar (145 psi)

Machine Data

• Dimensions (W L H): 30.2 61.3 51.5 cm

• Weight: 35 kg

Torch

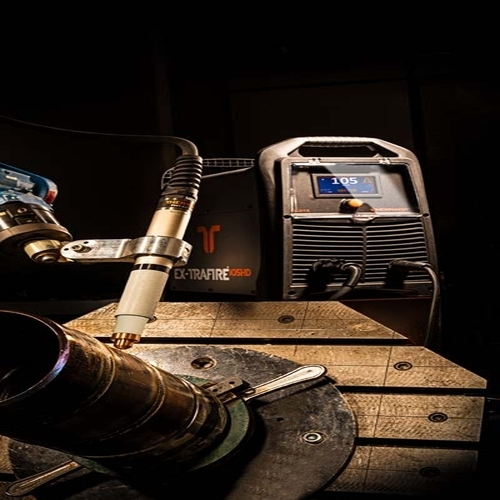

• Model: FHT-EX 105TT

• Quick-change ergonomic torch

• Compatible with CNC machines

Key Features

Extremely high-speed cutting with long-cut precision
Cutting, gouging, marking, and grid cutting modes
Automatic gas identification (air, nitrogen, argon)
Industry 4.0 ready (CAN, RS 485, RS 422 interfaces optional)

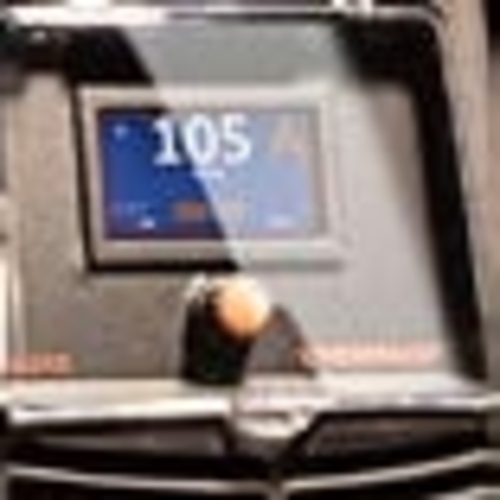

Large 4 color LCD display and intuitive control panel
Low operating costs and 20% longer consumable life
Generator compatible and suitable for worldwide use

The EX-TRAFIRE 105HD is a powerful solution for professionals who demand uninterrupted performance, cutting accuracy, and industrial reliability in the most challenging environments.
