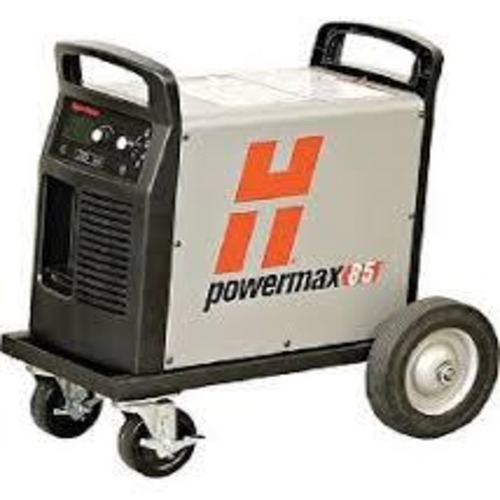

Hypertherm PMX 85 Air Plasma Cutting Machine

About Hypertherm PMX 85 Air Plasma Cutting Machine

Powermax85 Plasma Cutting System

General Description

The Powermax85 is a professionalgrade plasma cutting and gouging system engineered for heavyduty industrial use With a recommended handheld cutting capacity of 25 mm and mechanized piercing of 20 mm it provides unmatched speed cut quality and operational reliability The system is ideal for fabrication shops construction maintenance and industrial applications requiring precision durability and ease of use

Cutting Performance

Recommended Cut 25 mm  500 mmmin

Maximum Cut 32 mm 250 mmmin

Severance Cut 38 mm  125 mmmin

Piercing Capacity Mechanized 20 mm

Gouging Performance

Metal Removal Rate 88 kgh

Typical Groove Size 58 mm deep  71 mm wide

Power  Duty Cycle

Output Current 2585 A

Rated Output Voltage 143 VDC

Duty Cycle 40C

60  85 A 480V 1PH or 230600V 3PH

50  85 A 240V 1PH or 200208V 3PH

100  66 A All voltage configurations

Input Power Options

Voltage

200480 V 1Phase

200600 V 3Phase

Input Current

Up to 70 A 1PH 42 A 3PH

Compressed Air Requirements

Cutting 189 lmin  59 bar

Gouging 212 lmin  48 bar

Gas Type Clean dry oilfree air or nitrogen

Machine Data

Dimensions L  W  H 500  234  455 cm

Weight with 76 m torch 32 kg

Torch Options

Duramax Series

75 15 180 machine torches

Robotic and mini machine torch options

Key Features

 High cutting speed25x faster than oxyfuel on 12 mm steel

 Smart Sense auto air pressure adjustment

 Dragcutting with drossreducing shield

 Low operating cost with long consumable life

 SpringStart for reliable torch starting

 Designed to withstand industrial impact and heat

 3year warranty on power supply 1year on torch

The Powermax85 delivers the power efficiency and durability needed to handle the most demanding cutting and gouging jobs with maximum uptime and minimal operator fatigue
